Scripts and job logs

DETAILS: Tier: Free, Premium, Ultimate Offering: GitLab.com, Self-managed, GitLab Dedicated

You can use special syntax in script sections to:

Use special characters with script

Sometimes, script commands must be wrapped in single or double quotes. For example, commands that contain a colon (:) must be wrapped in single quotes ('). The YAML parser needs to interpret the text as a string rather than a "key: value" pair.

For example, this script uses a colon:

job:
  script:
    - curl --request POST --header 'Content-Type: application/json' "https://gitlab/api/v4/projects"

To be considered valid YAML, you must wrap the entire command in single quotes. If the command already uses single quotes, you should change them to double quotes (") if possible:

job:
  script:
    - 'curl --request POST --header "Content-Type: application/json" "https://gitlab/api/v4/projects"'

You can verify the syntax is valid with the CI Lint tool.

Be careful when using these characters as well:

  • {, }, [, ], ,, &, *, #, ?, |, -, <, >, =, !, %, @, `.

Ignore non-zero exit codes

When script commands return an exit code other than zero, the job fails and further commands do not execute.

Store the exit code in a variable to avoid this behavior:

job:
  script:
    - false || exit_code=$?
    - if [ $exit_code -ne 0 ]; then echo "Previous command failed"; fi;

Set a default before_script or after_script for all jobs

You can use before_script and after_script with default:

  • Use before_script with default to define a default array of commands that should run before the script commands in all jobs.
  • Use after_script with default to define a default array of commands that should run after any job completes or is canceled.

You can overwrite a default by defining a different one in a job. To ignore the default use before_script: [] or after_script: []:

default:
  before_script:
    - echo "Execute this `before_script` in all jobs by default."
  after_script:
    - echo "Execute this `after_script` in all jobs by default."

job1:
  script:
    - echo "These script commands execute after the default `before_script`,"
    - echo "and before the default `after_script`."

job2:
  before_script:
    - echo "Execute this script instead of the default `before_script`."
  script:
    - echo "This script executes after the job's `before_script`,"
    - echo "but the job does not use the default `after_script`."
  after_script: []

Skip after_script commands if a job is cancelled

  • Introduced in GitLab 17.0 with a flag named ci_canceling_status. Enabled by default. Requires GitLab Runner version 16.11.1.
  • Generally available in GitLab 17.3. Feature flag ci_canceling_status removed.

after_script commands run if a job is canceled while the before_script or script section of that job are running.

The job's status in the UI is canceling while the after_script are executing, and changes to canceled after the after_script commands complete. The $CI_JOB_STATUS predefined variable has a value of canceled while the after_script commands are running.

To prevent after_script commands running after canceling a job, configure the after_script section to:

  1. Check the $CI_JOB_STATUS predefined variable at the start of the after_script section.
  2. End execution early if the value is canceled.

For example:

job1:
  script:
    - my-script.sh
  after_script:
    - if [ "$CI_JOB_STATUS" == "canceled" ]; then exit 0; fi
    - my-after-script.sh

Split long commands

You can split long commands into multiline commands to improve readability with | (literal) and > (folded) YAML multiline block scalar indicators.

WARNING: If multiple commands are combined into one command string, only the last command's failure or success is reported. Failures from earlier commands are ignored due to a bug. To work around this, run each command as a separate script item, or add an exit 1 command to each command string.

You can use the | (literal) YAML multiline block scalar indicator to write commands over multiple lines in the script section of a job description. Each line is treated as a separate command. Only the first command is repeated in the job log, but additional commands are still executed:

job:
  script:
    - |
      echo "First command line."
      echo "Second command line."
      echo "Third command line."

The example above renders in the job log as:

$ echo First command line # collapsed multiline command
First command line
Second command line.
Third command line.

The > (folded) YAML multiline block scalar indicator treats empty lines between sections as the start of a new command:

job:
  script:
    - >
      echo "First command line
      is split over two lines."

      echo "Second command line."

This behaves similarly to multiline commands without the > or | block scalar indicators:

job:
  script:
    - echo "First command line
      is split over two lines."

      echo "Second command line."

Both examples above render in the job log as:

$ echo First command line is split over two lines. # collapsed multiline command
First command line is split over two lines.
Second command line.

When you omit the > or | block scalar indicators, GitLab concatenates non-empty lines to form the command. Make sure the lines can run when concatenated.

Shell here documents work with the | and > operators as well. The example below transliterates lower case letters to upper case:

job:
  script:
    - |
      tr a-z A-Z << END_TEXT
        one two three
        four five six
      END_TEXT

Results in:

$ tr a-z A-Z << END_TEXT # collapsed multiline command
  ONE TWO THREE
  FOUR FIVE SIX

Add color codes to script output

Script output can be colored using ANSI escape codes, or by running commands or programs that output ANSI escape codes.

For example, using Bash with color codes:

job:
  script:
    - echo -e "\e[31mThis text is red,\e[0m but this text isn't\e[31m however this text is red again."

You can define the color codes in Shell environment variables, or even CI/CD variables, which makes the commands easier to read and reusable.

For example, using the same example as above and environment variables defined in a before_script:

job:
  before_script:
    - TXT_RED="\e[31m" && TXT_CLEAR="\e[0m"
  script:
    - echo -e "${TXT_RED}This text is red,${TXT_CLEAR} but this part isn't${TXT_RED} however this part is again."
    - echo "This text is not colored"

Or with PowerShell color codes:

job:
  before_script:
    - $esc="$([char]27)"; $TXT_RED="$esc[31m"; $TXT_CLEAR="$esc[0m"
  script:
    - Write-Host $TXT_RED"This text is red,"$TXT_CLEAR" but this text isn't"$TXT_RED" however this text is red again."
    - Write-Host "This text is not colored"

Expand and collapse job log sections

Job logs are divided into sections that can be collapsed or expanded. Each section displays the duration.

In the following example:

  • Three sections have been collapsed and can be expanded.
  • Three sections are expanded and can be collapsed.

Collapsible sections

Custom collapsible sections

You can create collapsible sections in job logs by manually outputting special codes that GitLab uses to delimit collapsible sections:

  • Section start marker: \e[0Ksection_start:UNIX_TIMESTAMP:SECTION_NAME\r\e[0K + TEXT_OF_SECTION_HEADER
  • Section end marker: \e[0Ksection_end:UNIX_TIMESTAMP:SECTION_NAME\r\e[0K

You must add these codes to the script section of the CI configuration. For example, using echo:

job1:
  script:
    - echo -e "\e[0Ksection_start:`date +%s`:my_first_section\r\e[0KHeader of the 1st collapsible section"
    - echo 'this line should be hidden when collapsed'
    - echo -e "\e[0Ksection_end:`date +%s`:my_first_section\r\e[0K"

The escape syntax may differ depending on the shell that your runner uses. For example if it is using Zsh, you may need to escape the special characters with \\e or \\r.

In the example above:

  • date +%s: Command that produces the Unix timestamp (for example 1560896352).
  • my_first_section: The name given to the section. The name can only be composed of letters, numbers, and the _, ., or - characters.
  • \r\e[0K: Escape sequence that prevents the section markers from displaying in the rendered (colored) job log. They are displayed when viewing the raw job log, accessed in the upper-right corner of the job log by selecting Show complete raw ({doc-text}).
    • \r: carriage return (returns the cursor to the start of the line).
    • \e[0K: ANSI escape code to clear the line from the cursor position to the end of the line. (\e[K alone does not work; the 0 must be included).

Sample raw job log:

\e[0Ksection_start:1560896352:my_first_section\r\e[0KHeader of the 1st collapsible section
this line should be hidden when collapsed
\e[0Ksection_end:1560896353:my_first_section\r\e[0K

Sample job console log:

Custom collapsible sections

Use a script to improve display of collapsible sections

To remove the echo statements that create the section markers from the job output, you can move the job contents to a script file and invoke it from the job:

  1. Create a script that can handle the section headers. For example:

    # function for starting the section
    function section_start () {
      local section_title="${1}"
      local section_description="${2:-$section_title}"

      echo -e "section_start:`date +%s`:${section_title}[collapsed=true]\r\e[0K${section_description}"
    }

    # Function for ending the section
    function section_end () {
      local section_title="${1}"

      echo -e "section_end:`date +%s`:${section_title}\r\e[0K"
    }

    # Create sections
    section_start "my_first_section" "Header of the 1st collapsible section"

    echo "this line should be hidden when collapsed"

    section_end "my_first_section"

    # Repeat as required
  2. Add the script to the .gitlab-ci.yml file:

    job:
      script:
        - source script.sh

Pre-collapse sections

You can make the job log automatically collapse collapsible sections by adding the collapsed option to the section start. Add [collapsed=true] after the section name and before the \r. The section end marker remains unchanged:

  • Section start marker with [collapsed=true]: \e[0Ksection_start:UNIX_TIMESTAMP:SECTION_NAME[collapsed=true]\r\e[0K + TEXT_OF_SECTION_HEADER
  • Section end marker (unchanged): \e[0Ksection_end:UNIX_TIMESTAMP:SECTION_NAME\r\e[0K

Add the updated section start text to the CI configuration. For example, using echo:

job1:
  script:
    - echo -e "\e[0Ksection_start:`date +%s`:my_first_section[collapsed=true]\r\e[0KHeader of the 1st collapsible section"
    - echo 'this line should be hidden automatically after loading the job log'
    - echo -e "\e[0Ksection_end:`date +%s`:my_first_section\r\e[0K"

Troubleshooting

Syntax is incorrect in scripts that use :

If you use a colon (:) in a script, GitLab might output:

  • Syntax is incorrect
  • script config should be a string or a nested array of strings up to 10 levels deep

For example, if you use "PRIVATE-TOKEN: ${PRIVATE_TOKEN}" as part of a cURL command:

pages-job:
  stage: deploy
  script:
    - curl --header 'PRIVATE-TOKEN: ${PRIVATE_TOKEN}' "https://gitlab.example.com/api/v4/projects"
  environment: production

The YAML parser thinks the : defines a YAML keyword, and outputs the Syntax is incorrect error.

To use commands that contain a colon, you should wrap the whole command in single quotes. You might need to change existing single quotes (') into double quotes ("):

pages-job:
  stage: deploy
  script:
    - 'curl --header "PRIVATE-TOKEN: ${PRIVATE_TOKEN}" "https://gitlab.example.com/api/v4/projects"'
  environment: production

Job does not fail when using && in a script

If you use && to combine two commands together in a single script line, the job might return as successful, even if one of the commands failed. For example:

job-does-not-fail:
  script:
    - invalid-command xyz && invalid-command abc
    - echo $?
    - echo "The job should have failed already, but this is executed unexpectedly."

The && operator returns an exit code of 0 even though the two commands failed, and the job continues to run. To force the script to exit when either command fails, enclose the entire line in parentheses:

job-fails:
  script:
    - (invalid-command xyz && invalid-command abc)
    - echo "The job failed already, and this is not executed."

Multiline commands not preserved by folded YAML multiline block scalar

If you use the - > folded YAML multiline block scalar to split long commands, additional indentation causes the lines to be processed as individual commands.

For example:

script:
  - >
    RESULT=$(curl --silent
      --header
        "Authorization: Bearer $CI_JOB_TOKEN"
      "${CI_API_V4_URL}/job"
    )

This fails as the indentation causes the line breaks to be preserved:

$ RESULT=$(curl --silent # collapsed multi-line command
curl: no URL specified!
curl: try 'curl --help' or 'curl --manual' for more information
/bin/bash: line 149: --header: command not found
/bin/bash: line 150: https://gitlab.example.com/api/v4/job: No such file or directory

Resolve this by either:

  • Removing the extra indentation:

    script:
      - >
        RESULT=$(curl --silent
        --header
        "Authorization: Bearer $CI_JOB_TOKEN"
        "${CI_API_V4_URL}/job"
        )
  • Modifying the script so the extra line breaks are handled, for example using shell line continuation:

    script:
      - >
        RESULT=$(curl --silent \
          --header \
            "Authorization: Bearer $CI_JOB_TOKEN" \
          "${CI_API_V4_URL}/job")

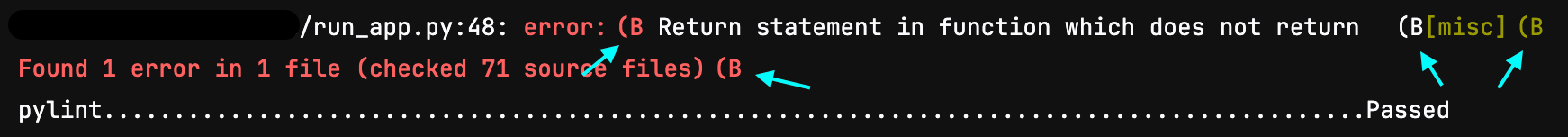

Job log output is not formatted as expected or contains unexpected characters

Sometimes the formatting in the job log displays incorrectly with tools that rely on the TERM environment variable for coloring or formatting. For example, with the mypy command:

Example output

GitLab Runner runs the container's shell in non-interactive mode, so the shell's TERM environment variable is set to dumb. To fix the formatting for these tools, you can:

  • Add an additional script line to set TERM=ansi in the shell's environment before running the command.
  • Add a TERM CI/CD variable with a value of ansi.

after_script section execution stops early and incorrect $CI_JOB_STATUS values

In GitLab Runner 16.9.0 to 16.11.0:
